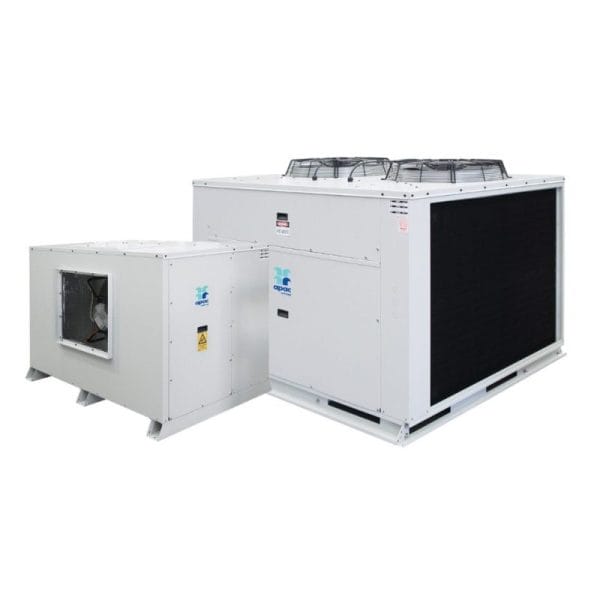

Apac S095IHR / S095OVR 94.04 kW Signature Split Ducted Horizontal
Apac S095IHR / S095OVR 94.04 kW Signature Split Ducted Horizontal
Quieter operation with 12db(A) sound reduction
Energy efficient | MEPS Compliant
Indoor: S095IHR | Outdoor: S095OVR
5 year manufacturer warranty
|
Model Number (Reverse Cycle)
|
Indoor Unit | S095IHR |
| Outdoor Unit | S095OVR | |
|
Rated Cooling
|
Total Capacity (kW)3 | 94.04 |
| Sensible3 | 77.49 | |
| EER (kW/ikW)3 | 3.24 | |
|
Rated Heating
|
Total Capacity (kW) | 96.1 |
| COP | 3.6 | |
| MEPS Certified | BCA Compliant | |
|
Operating Range
|
Maximum °C | 50 |
| Minimum °C | -10 | |
| Capacity Steps | % | 0/50/101 |
|
Compressor
|
Type | Scroll |
| Starter | D.O.L (Optional Soft Starter) | |
| Qty | 2 | |
|
Outdoor Fan
|
Type | EC Hybrid Axial |
| Speed Control | Pressure Transducer | |
| Qty | 2 | |
|
Refrigerant System
|
Type | R410A |
| Charge Per Circuit kg | 10.8 | |
| No of Circuits | 2 | |
|
Indoor Fan
|
Type | EC Plug |
| Speed Control | Potentiometer | |
| Qty | 2 | |
|
Airflow Indoor (L/s)
|
Nominal | 4930 |
| Maximum | 6163 | |
| Minimum | 3698 | |
| Available External Static Pressure |
Pa | High Static Capability (See Fan Performance Curves) |
| IP Rating | IP45 | |
| Power Supply | (Volt/Phase/Hz) | 400-415V / 3Ph + N / 50Hz |
| Rated Load Amps4 | Outdoor/Indoor/ Total |
52.2/4.1/56.3 |
| Full Load Amps5 | Outdoor/Indoor/ Total |
71/8.6/79.6 |
|
Outdoor Dimensions (mm)
|
Height | 1800 |
| Width | 2200 | |
| Length | 1425 | |
|

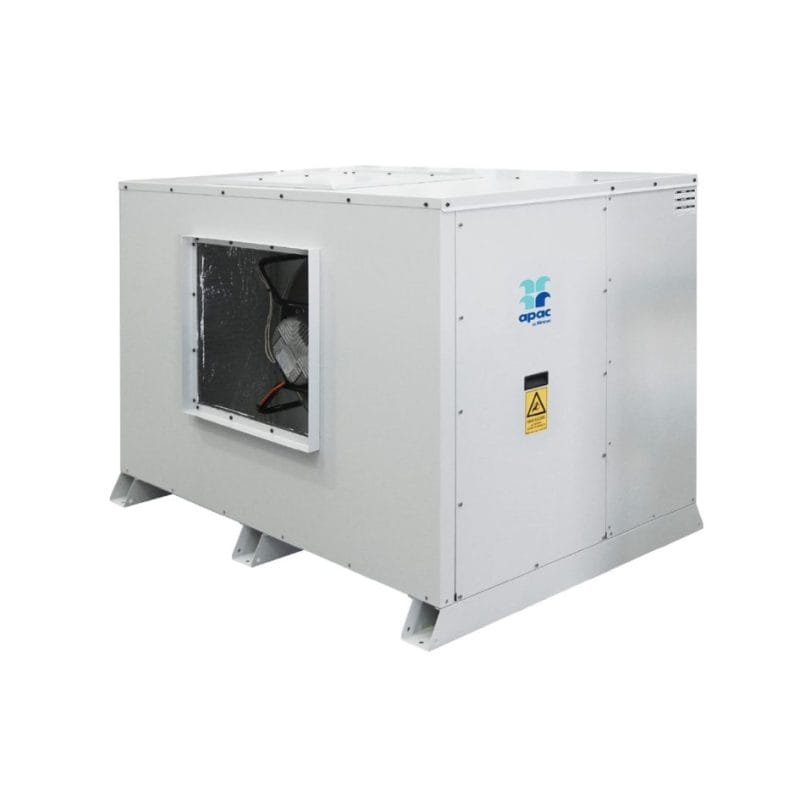

Indoor Dimensions (mm)
|
Height | 1805 |
| Width | 1850 | |
| Length | 1100 | |
|
Indoor and Outdoor Pipe Connection Diameter
|
Liquid mm (inch) | 15.9 (5/8″) x 3 |
| Gas mm (inch) | 28.6 (1-1/8″) x 3 | |
| Nominal Weight2. | Outdoor kg | 783 |
| Nominal Weight2. | Indoor kg | 461 |
| Rated Sound Power | db(A) | 71.5 |
Features
- Field configurable supply air outlet
- EC plug fans with high static capability up to 500pa
- Hybrid axial fan (12-45kW)
- EC hybrid axial fan (55-95kW)
- TXV refrigerant control
- Condenser coil anti-corrosion protection
- Open controls
- 25mm PE closed cell insulation
- Phase fail protection relay
- MEPS certified
- BCA compliant
- Factory options customised to order
Outdoor
- Compressor soft starter
- Copper/copper coil(s)
- Capacity modulation control
- High static pressure outdoor fans
- Outdoor coil(s) with anti-corrosion post-treatment
- Outdoor coil guards, powder coated
- Discharge & suction isolation valves
- High Level Interface (HLI) Modbus connectivity
- Cable markers
Indoor
- Double layered insulation to indoor section
- Copper/copper coil(s)
- Indoor coil(s) with anti-corrosion post-treatment
Factory options engineered to order
Outdoor
- 316 stainless steel cabinet, unpainted
- 304 stainless steel cabinet, powder coated
- Stainless steel external fixings
- Coil(s) copper / copper
- Power supply – no neutral (415/3/50)
- Ductable air off in lieu of standard axial
Indoor - Stainless steel external fixings
- Coil(s) copper / copper
- Power supply – no neutral (415/3/50)
- R22/R407C application
Description
94.04 kW Cooling
96.10 kW Heating
MEPS Compliant | Energy efficient | Quieter operation
