SKU: S040IHR / S040OVR

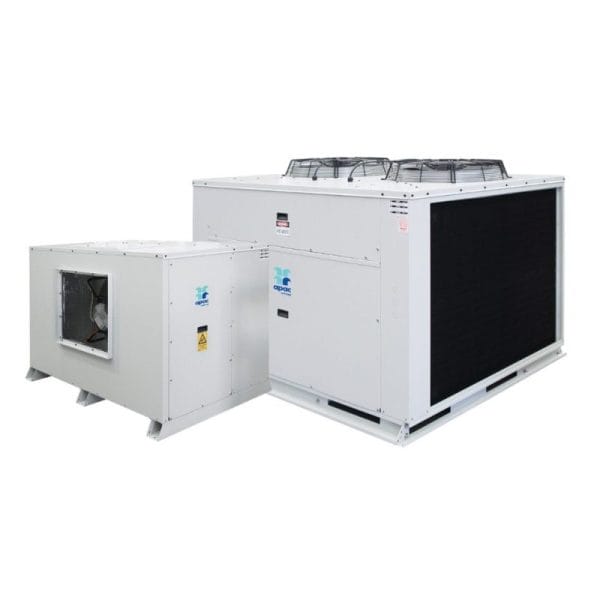

Apac S040IHR / S040OVR 39.78 kW Signature Split Ducted Horizontal
Quieter operation with 12db(A) sound reduction
Energy efficient | MEPS Compliant
Indoor: S040IHR | Outdoor: S040OVR

5 year manufacturer warranty



Or own it from $0.00 weekly for 6 months* zip money
Or pay in slices, no interest ever

Model Number (Reverse Cycle)

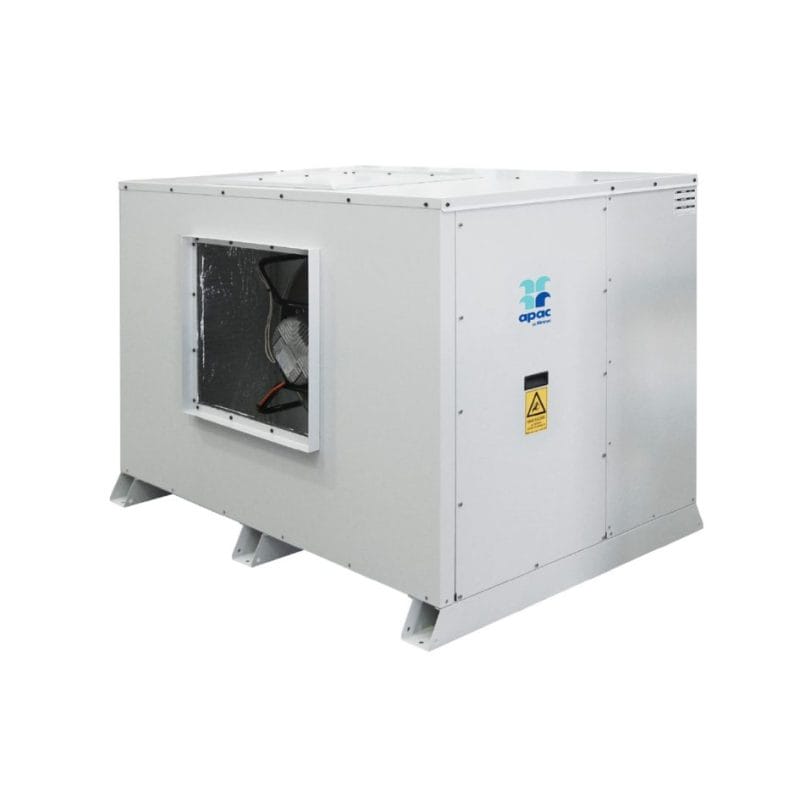

 Indoor Unit S040IHR
Outdoor Unit S040OVR
Rated Cooling
 Total Capacity (kW)3 39.78
Sensible3 33.42
EER (kW/ikW)3 3.4
Rated Heating
 Total Capacity (kW) 40.1
COP 3.61
MEPS Certified Yes
Operating Range
 Maximum °C 50
Minimum °C -10
Capacity Steps % 0/50/101
Compressor
 Type Scroll
Starter D.O.L (Optional Soft Starter)
Qty 2
Outdoor Fan
 Type Hybrid Axial
Speed Control Variable Speed
Qty 2
Refrigerant System
 Type R410A
Charge Per Circuit kg 7.3
No of Circuits 2
Indoor Fan
 Type EC Plug
Speed Control Potentiometer
Qty 1
Airflow Indoor (L/s)
 Nominal 1985
Maximum 2481
Minimum 1489
Available External
Static Pressure		 Pa High Static Capability (See Fan Performance Curves)
IP Rating IP45
Power Supply (Volt/Phase/Hz) 400-415V / 3Ph + N / 50Hz
Rated Load Amps4 Outdoor/Indoor/
Total		 19.4/ 1.3/ 20.7
Full Load Amps5 Outdoor/Indoor/
Total		 35.2/4.6/39.8
Outdoor Dimensions (mm)
 Height 1190
Width 1850
Length 1425
Indoor Dimensions (mm)
 Height 1195
Width 1600
Length 1100
Indoor and Outdoor Pipe Connection Diameter
 Liquid mm (inch) 9.5 (3/8″) x 2
Gas mm (inch) 22.2 (7/8″) x 2
Nominal Weight2. Outdoor kg 414
Nominal Weight2. Indoor kg 233
Rated Sound Power db(A) 66.3

Features

  • Field configurable supply air outlet
  • EC plug fans with high static capability up to 500pa
  • Hybrid axial fan (12-45kW)
  • EC hybrid axial fan (55-95kW)
  • TXV refrigerant control
  • Condenser coil anti-corrosion protection
  • Open controls
  • 25mm PE closed cell insulation
  • Phase fail protection relay
  • MEPS certified
  • BCA compliant
  • Factory options customised to order

Outdoor

  • Compressor soft starter
  • Copper/copper coil(s)
  • Capacity modulation control
  • High static pressure outdoor fans
  • Outdoor coil(s) with anti-corrosion post-treatment
  • Outdoor coil guards, powder coated
  • Discharge & suction isolation valves
  • High Level Interface (HLI) Modbus connectivity
  • Cable markers

Indoor

  • Double layered insulation to indoor section
  • Copper/copper coil(s)
  • Indoor coil(s) with anti-corrosion post-treatment

Factory options engineered to order

Outdoor

  • 316 stainless steel cabinet, unpainted
  • 304 stainless steel cabinet, powder coated
  • Stainless steel external fixings
  •  Coil(s) copper / copper
  • Power supply – no neutral (415/3/50)
  • Ductable air off in lieu of standard axial
    Indoor
  • Stainless steel external fixings
  • Coil(s) copper / copper
  •  Power supply – no neutral (415/3/50)
  • R22/R407C application

Apac S040IHR / S040OVR 39.78 kW Signature Split Ducted Horizontal – Brochure

Description

39.78 kW Cooling
40.10 kW Heating

MEPS Compliant | Energy efficient | Quieter operation
