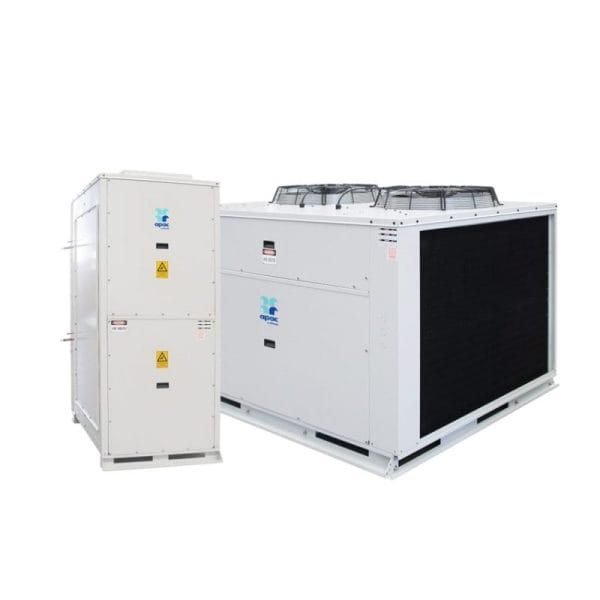

Apac S020IVR 20.00 kW Signature Vertical Split Ducted

SKU: S020IVR / S020OVR

20.00 kW Cooling | 20.60 kW Heating
Apac S020IVR 20.00 kW Signature Vertical Split Ducted

  • Floor mounted vertical design with space saving footprint
  • Quieter operation with 12db(A) sound reduction
  • Condenser coil anti-corrosion protection | MEPS Compliant

5 Years Manufacturer’s Warranty



Or own it from $0.00 weekly for 6 months* zip money
Or pay in slices, no interest ever

Model Number (Reverse Cycle)
 Indoor Unit S020IVR
Outdoor Unit S020OVR
Rated Cooling
 Total Capacity (kW)3 20.00
Sensible3 15.30
EER (kW/ikW)3 3.39
Rated Heating1
 Total Capacity (kW) 20.60
COP 3.81
MEPS Certified Yes
Operating Range
 Maximum °C +50
Minimum °C -10
Capacity Steps % 0/100
Compressor
 Type Scroll
Starter D.O.L (Optional Soft Starter)
Qty 1
Outdoor Fan
 Type Hybrid Axial
Speed Control Pressure Transducer
Qty 2
Refrigerant System
 Type R410A
Charge Per Circuit kg 7.3
No of Circuits 1
Indoor Fan
 Type EC Plug
Speed Control Potentiometer
Qty 1
Airflow Indoor (L/s)
 Nominal 990
Maximum 1238
Minimum 743
Available External Static Pressure Pa High Static Capability (See Performance Curves)
IP Rating IP44
Power Supply (Volt/Phase/Hz) 400-415V / 3Ph + N / 50Hz
Rated Load Amps4 Outdoor/Indoor/Total 9.4/1.0/10.4
Full Load Amps5 Outdoor/Indoor/Total 17.4/2.6/20.0
Outdoor Dimensions (mm)
 Height 1162
Width 730
Length 1550
Indoor Dimensions (mm)
 Height 1810
Width 850
Length 625
Indoor and Outdoor Pipe Connection Diameter
 Liquid mm (inch) 9.5 (3/8″) x 1
Gas mm (inch) 22.2 (7/8″) x 1
Nominal Weight2. Outdoor kg 220
Nominal Weight2. Indoor kg 147
Rated Sound Power db(A) 66.6

Features

  • Floor mounted vertical design with space saving footprint
  • EC plug fans with high static capability up to 500pa
  • Hybrid axial fan
  • TXV refrigerant control
  • Condenser coil anti-corrosion protection
  • 25mm PE closed cell insulation
  • Phase fail protection relay
  • MEPS certified

Factory options customised to order

  • Compressor soft starter
  • High static pressure outdoor fans
  • Capacity modulation control
  • Outdoor coil(s) with anti-corrosion post-treatment
  • Outdoor coil guards, powder coated.
  • Discharge & suction isolation valves
  • High Level Interface (HLI) Modbus connectivity
  • APAC supply & return connections
  • Cable markers
  • Fire Relay

Factory options engineered to order

  • 316 stainless steel cabinet, unpainted
  • 304 stainless steel cabinet, powder coated
  • Stainless steel external fixings
  • Outdoor coil(s) copper / copper
  • Indoor coil(s) copper / copper
  • Power supply – no neutral (415/3/50)
  • Ductable air off in lieu of standard axial
