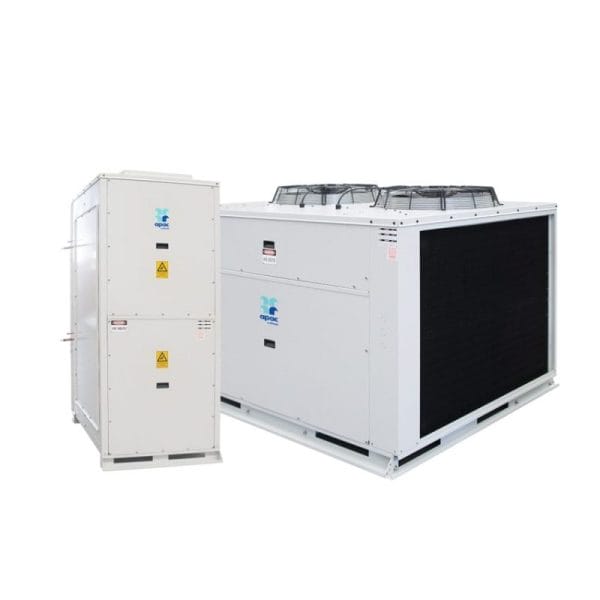

Apac S012IVR 25.15 kW Signature Vertical Split Ducted
25.15 kW Cooling | 23.80 kW Heating
Apac S012IVR 25.15 kW Signature Vertical Split Ducted
- Floor mounted vertical design with space saving footprint
- Quieter operation with 12db(A) sound reduction
- Condenser coil anti-corrosion protection | MEPS Compliant
5 Years Manufacturer’s Warranty
|
Model Number (Reverse Cycle)
|
Indoor Unit | S024IVR |
| Outdoor Unit | S024OVR | |
|
Rated Cooling
|
Total Capacity (kW)3 | 25.15 |
| Sensible3 | 19.39 | |
| EER (kW/ikW)3 | 3.59 | |
|
Rated Heating1
|
Total Capacity (kW) | 23.80 |
| COP | 3.66 | |
| MEPS Certified | Yes | |
|
Operating Range
|
Maximum °C | +50 |
| Minimum °C | -10 | |
| Capacity Steps | % | 0/50/100 |
|
Compressor
|
Type | Scroll |
| Starter | D.O.L (Optional Soft Starter) | |
| Qty | 2 | |
|
Outdoor Fan
|
Type | Hybrid Axial |
| Speed Control | Pressure Transducer | |
| Qty | 2 | |
|
Refrigerant System
|
Type | R410A |
| Charge Per Circuit kg | 3.95 | |
| No of Circuits | 2 | |
|
Indoor Fan
|
Type | EC Plug |
| Speed Control | Potentiometer | |
| Qty | 1 | |
|
Airflow Indoor (L/s)
|
Nominal | 1250 |
| Maximum | 1563 | |
| Minimum | 938 | |
| Available External Static Pressure | Pa | High Static Capability (See Performance Curves) |
| IP Rating | IP44 | |
| Power Supply | (Volt/Phase/Hz) | 400-415V / 3Ph + N / 50Hz |
| Rated Load Amps4 | Outdoor/Indoor/Total | 12.8/ 1.1/13.6 |
| Full Load Amps5 | Outdoor/Indoor/Total | 19.6/4.2/23.8 |
|
Outdoor Dimensions (mm)
|
Height | 1190 |
| Width | 1850 | |
| Length | 1425 | |
|
Indoor Dimensions (mm)
|
Height | 2140 |
| Width | 925 | |
| Length | 950 | |
|
Indoor and Outdoor Pipe Connection Diameter
|
Liquid mm (inch) | 9.5 (3/8″) x 2 |
| Gas mm (inch) | 19.1 (3/4″) x 2 | |
| Nominal Weight2. | Outdoor kg | 362 |
| Nominal Weight2. | Indoor kg | 192 |
| Rated Sound Power | db(A) | 66.5 |
Features
- Floor mounted vertical design with space saving footprint
- EC plug fans with high static capability up to 500pa
- Hybrid axial fan
- TXV refrigerant control
- Condenser coil anti-corrosion protection
- 25mm PE closed cell insulation
- Phase fail protection relay
- MEPS certified
Factory options customised to order
- Compressor soft starter
- High static pressure outdoor fans
- Capacity modulation control
- Outdoor coil(s) with anti-corrosion post-treatment
- Outdoor coil guards, powder coated.
- Discharge & suction isolation valves
- High Level Interface (HLI) Modbus connectivity
- APAC supply & return connections
- Cable markers
- Fire Relay
Factory options engineered to order
- 316 stainless steel cabinet, unpainted
- 304 stainless steel cabinet, powder coated
- Stainless steel external fixings
- Outdoor coil(s) copper / copper
- Indoor coil(s) copper / copper
- Power supply – no neutral (415/3/50)
- Ductable air off in lieu of standard axial
