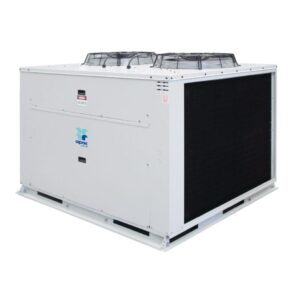

Apac P230AHR 222.89 kW Signature Rooftop Package Unit - 2
Apac P230AHR 222.89 kW Signature Rooftop Package Unit - 3
Apac P230AHR 222.89 kW Signature Rooftop Package Unit - 4

Apac P230AHR 222.89kW Signature Rooftop Package Unit

SKU: P230AHR

Apac P230AHR 222.89kW Signature Rooftop Package Unit
Quieter operation with 12db(A) sound reduction
Energy efficient | MEPS Compliant | System: P230AHR

5 year manufacturer warranty



Or own it from $0.00 weekly for 6 months* zip money
Or pay in slices, no interest ever

Model Number (Reverse Cycle) Packaged Unit P230AHR
Rated Cooling
 Total Capacity (kW)3 222.89
Sensible 3 182.32
EER (kW/ikW)3 3.27
Rated Heating1
 Total Capacity (kW) 218.19
COP 4
MEPS
Certified		 MEPS Certified/ BCA Yes
Operating Range
 Maximum °C 50
Minimum °C
Capacity Steps % 8
Compressor
 Type Tandem Scroll
Starter D.O.L (Optional Soft Starter)
Qty 4
Outdoor Fan
 Type EC Axial
Speed Control Pressure Transducer
Qty 4
Refrigerant System
 Type R410A
Charge Per Circuit kg 13.7
No of Circuits 4
Indoor Fan
 Type EC Plug
Speed Control Potentiometer
Qty 1
Airflow Indoor (L/s)
 Nominal 11500
Maximum 14375
Minimum 8625
Available External
Static Pressure		 Pa High Static Capability (See Fan Performance Curves)
IP Rating IP44
Power Supply (Volt/Phase/Hz) 400-415V / 3Ph + N / 50Hz
Rated Load
Amps4		 Total 117.8
Full Load
Amps5		 Total 200.8
Dimensions (mm)
 Height 2400
Width 2242
Length 4085
Nominal
Weight2.		 kg 2410
Rated Sound Power db(A) 78.6

Features

  • Scroll type compressors
  • EC plug fans with high static capability up to 500pa
  • Hybrid axial fan (12-45kW)
  • EC hybrid axial fan (55-95kW)
  • TXV refrigerant control
  • Condenser coil anti-corrosion protection
  • Open controls
  • 25mm PE closed cell insulation
  • Phase fail protection relay
  • MEPS certified
  • BCA compliant

    Factory options customised to order
  • Compressor soft starter
  • High static pressure outdoor fans
  • Double layered insulation to indoor section
  • Capacity modulation control
  • Outdoor coil(s) with anti-corrosion post-treatment
  • Indoor coil(s) with anti-corrosion post-treatment
  • Outdoor coil guards, powder coated
  • Discharge & suction isolation valves
  • Liquid line isolation valves across filter drier
  • Cable markers
  • Fire relay
  • APAC Supply & Return connections
  • High Level Interface (HLI) Modbus connectivity
  • Integrated filter frame 50mm
  • Economiser – dampers and actuators (no controls)

Factory options engineered to order

  • 316 stainless steel cabinet, unpainted
  • 304 stainless steel cabinet, powder coated
  • Stainless steel external fixings
  • Outdoor coil(s) copper / copper
  • Indoor coil(s) copper / copper
  • Power supply – no neutral (415/3/50)
  • Ductable air off in lieu of standard axia

Apac P230AHR 222.89 kW Signature Rooftop Package Unit – Brochure

Description

222.89 kW Cooling
218.19 kW Heating

MEPS Compliant | Energy efficient | Quieter operation
