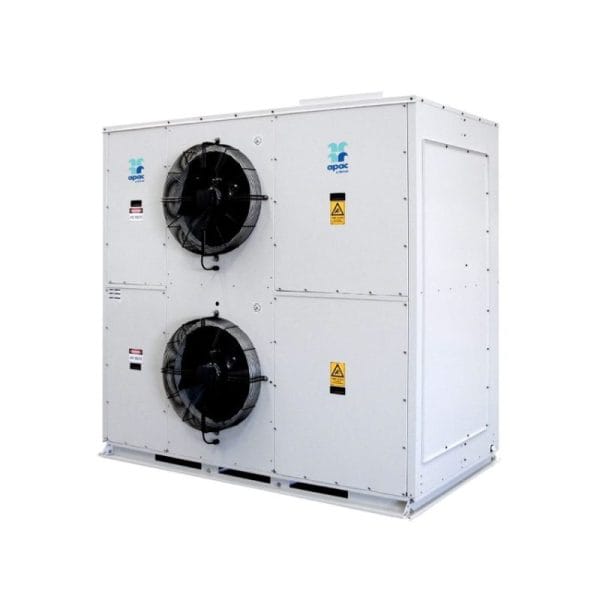

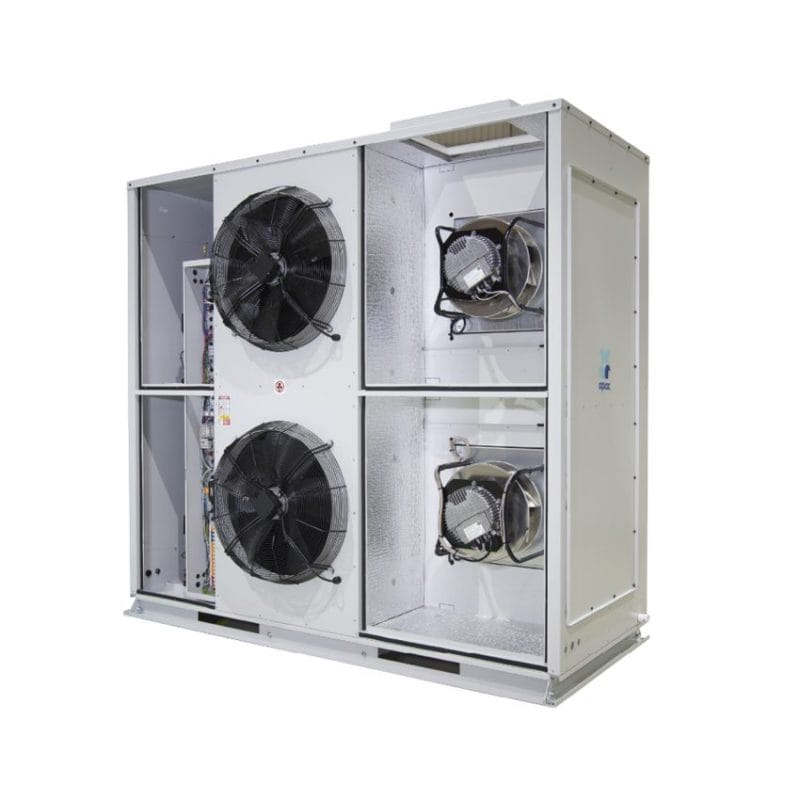

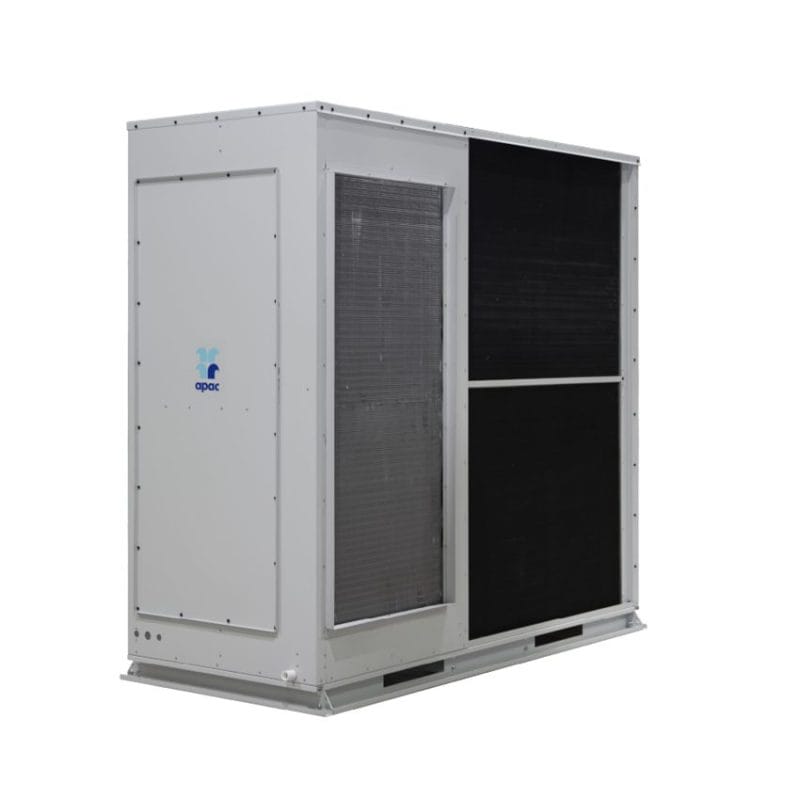

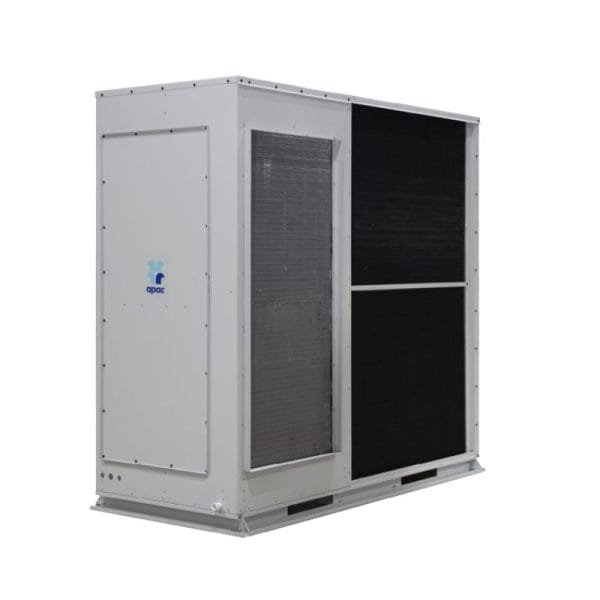

Apac P045AVR 45.27 kW Signature Vertical Package Unit

SKU: P045AVR

45.27 kW Cooling | 35.00 kW Heating
Apac P045AVR 45.27 kW Signature Vertical Package Unit

  • High static capability up to 500pa
  • Quieter operation with 12db(A) sound reduction
  • Condenser coil anti-corrosion protection | MEPS Compliant

5 Years Manufacturer’s Warranty



Or own it from $0.00 weekly for 6 months* zip money
Or pay in slices, no interest ever

Model Number (Reverse Cycle) Vertical Packaged P045AVR
Rated Cooling
 Total Capacity (kW)3 45.27
Sensible3 35.00
EER (kW/ikW)3 3.27
Rated Heating1
 Total Capacity (kW) 43.53
COP 3.77
MEPS Certified Yes
Operating Range
 Maximum °C +50
Minimum °C -10
Capacity Steps % 0/50/100
Compressor
 Type Scroll
Starter D.O.L (Optional Soft Starter)
Qty 2
Outdoor Fan
 Type Hybrid Axial
Speed Control Pressure Transducer
Qty 2
Refrigerant System
 Type
Charge Per Circuit kg 6.80
No of Circuits 2
Indoor Fan
 Type EC Plug
Speed Control Potentiometer
Qty 2
Airflow Indoor (L/s)
 Nominal 2235
Maximum 2794
Minimum 1676
Available External Static Pressure Pa High Static Capability (See Performance Curves)
IP Rating IP44
Power Supply (Volt/Phase/Hz) 400-415V / 3Ph + N / 50Hz
Rated Load Amps4 Total 23.50
Full Load Amps5 Total 40.50
Dimensions (mm)
 Height 2140
Width 2250
Length 950
Nominal Weight2. kg 620
Rated Sound Power db(A) 68.7

Features

  • Scroll type compressors
  • EC plug indoor fans with high static capability up to 500pa
  • Hybrid axial fan
  • TXV refrigerant control
  • Condenser coil anti-corrosion protection
  •  25mm PE closed cell insulation
  •  Phase fail protection relay
  • MEPS certified

Factory options customised to order

  • Compressor soft starter
  • High static pressure outdoor fans
  • Double layered insulation to indoor section
  • Capacity modulation control
  • Outdoor coil(s) with anti-corrosion post-treatment
  • Indoor coil(s) with anti-corrosion post-treatment
  • Outdoor coil guards, powder coated
  • Discharge & suction isolation valves
  • Liquid line isolation valves across filter drier
  • High Level Interface (HLI) Modbus connectivity
  • APAC Supply & Return connections
  • Cable markers
  • Fire relay

Factory options engineered to order

  • 316 stainless steel cabinet, unpainted
  • 304 stainless steel cabinet, powder coated
  • Stainless steel external fixings
  • Outdoor coil(s) copper / copper
  • Indoor coil(s) copper / copper
  • Power supply – no neutral (415/3/50)
  • Ductable air off in lieu of standard axial

Apac P045AVR 45.27 kW Signature Vertical Package Unit – Brochure
