SKU: P043AHR

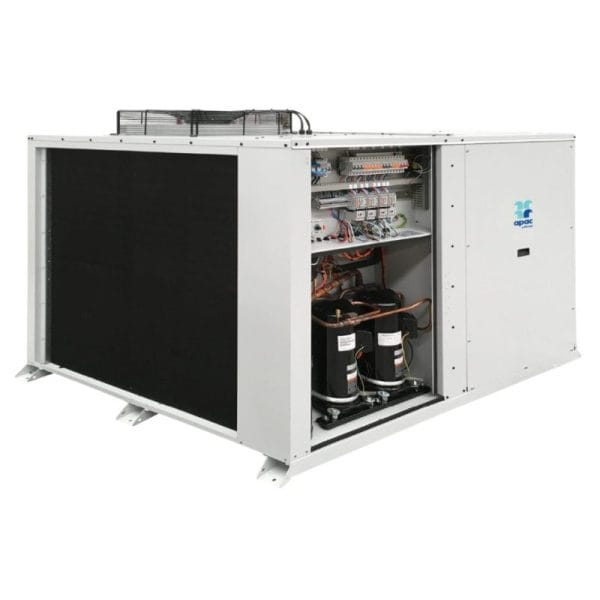

Apac P043AHR 42.21 kW Signature Compact Rooftop Package Unit
Quieter operation with 12db(A) sound reduction
Energy efficient | MEPS Compliant | System: P043AHR

5 year manufacturer warranty



Or own it from $0.00 weekly for 6 months* zip money
Or pay in slices, no interest ever

Model Number (Reverse Cycle) Packaged Unit P043AHR
Rated Cooling
 Total Capacity (kW)3 42.21
Sensible3 34.7
EER (kW/ikW)3 3.2
Rated Heating1
 Total Capacity (kW) 43.93
COP 3.62
MEPS Certified Yes
Operating Range
 Maximum °C 50
Minimum °C -10
Capacity Steps % 0/50/100
Compressor
 Type Tandem Scroll
Starter D.O.L (Optional Soft Starter)
Qty 1
Outdoor Fan
 Type EC Axial
Speed Control Pressure Transducer
Qty 1
Refrigerant System
 Type R410A
Charge Per Circuit kg 11
No of Circuits 1
Indoor Fan
 Type EC Plug
Speed Control Potentiometer
Qty 1
Airflow Indoor (L/s)
 Nominal 2200
Maximum 2750
Minimum 1650
Available External
Static Pressure		 Pa High Static Capability (See Performance Curves)
IP Rating IP44
Power Supply (Volt/Phase/Hz) 400-415V / 3Ph + N / 50Hz
Rated Load Amps4. Total 22.7
Full Load Amps5. Total 35.8
Total
Dimensions (mm)
 Height 1760
Width 1550
Length 1850
Nominal Weight2. Total kg 540
Rated Sound Power db(A) 68.5

Features

  • Tandem scoll compressors for high system efficiency at full & part load
  • 35% smaller footprint than equivalent RTU
  • 25% less gas charge than equivalent RTU
  • 42% less components than equivalent RTU
  • EC plug fans with high static capability up to 500pa
  • EC hybrid axial fan
  • TXV refrigerant control
  • Condenser coil anti-corrosion protection
  • Open controls
  • 25mm PE closed cell insulation
  • Phase fail protection relay
  • MEPS certified

Factory options customised to order

  • Compressor soft starter
  • High static pressure outdoor fans
  • Double layered insulation to indoor section
  • Capacity modulation control
  • Outdoor coil(s) with anti-corrosion post-treatment
  • Indoor coil(s) with anti-corrosion post-treatment
  • Outdoor coil guards, powder coated
  • Discharge & suction isolation valves
  • Liquid line isolation valves across filter drier
  • Cable markers
  • Fire relay
  •  APAC Supply & Return connections
  • High Level Interface (HLI) Modbus connectivity
  •  Integrated filter frame 50mm
  •  Economiser – dampers and actuators (no controls)

Factory options engineered to order

  • 316 stainless steel cabinet, unpainted
  • 304 stainless steel cabinet, powder coated
  • Stainless steel external fixings
  • Outdoor coil(s) copper / copper
  • Indoor coil(s) copper / copper
  • Power supply – no neutral (415/3/50)
  • Ductable air off in lieu of standard axial

Apac P043AHR 42.21 kW Signature Compact Rooftop Package Unit – Brochure

Description

42.21 kW Cooling
43.93 kW Heating

MEPS Compliant | Energy efficient | Quieter operation
