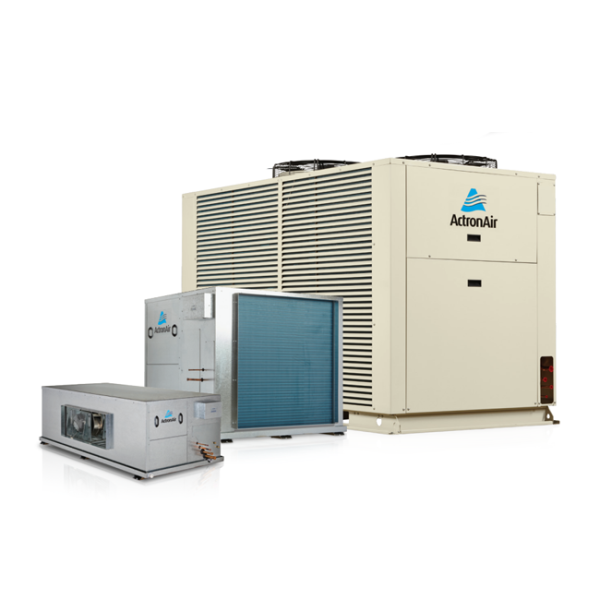

ActronAir CAY620T / EVY620T 63.00kW – Standard Profile Split Ducted Tri-Capacity System 3 Phase

SKU: CAY620T / EVY620T

ActronAir CAY620T / EVY620T 63.00kW – Standard Profile Split Ducted Tri-Capacity System 3 Phase
Includes Outdoor CAY620T | 1510mm Height Standard Profile Indoor EVY620T
High efficiency EC fan technology | Two speed condenser fans | Axial outdoor fan | Compliant Scroll Compressor



Or own it from $0.00 weekly for 6 months* zip money
Or pay in slices, no interest ever

OUTDOOR MODEL CAY620T
INDOOR MODEL EVY620T
Std Profile
1 Total (Gross) Capacity (kW) (AS/NZS3823.1.2)
 Cooling 63
Heating 60
Nett (Rated) Capacity (kW) (AS/NZS3823.1.2)
 Cooling 60.8
Heating 62.47
Input Power (kW) (AS/NZS3823.1.2)
 Cooling 20.5
Heating 20.15
2 EER Rated (AS/NZS3823.1.2)
3 COP Rated (AS/NZS3823.1.2)
 Cooling 2.97
Heating 3.1
Power Supply (V / Ph / Hz)
 Outdoor 400V / 3Ph + N / 50Hz
Indoor 400V / 3Ph + N / 50Hz
Rated Load Amps (AS/NZS3823.1.2) Full Load Amps (AS/NZS3823.1.2)
 Outdoor / Indoor / Total 35.7 / 3.5 / 39.2
Outdoor / Indoor / Total 47.9 / 6.0/ 53.9
4 Circuit Breaker Amps 63
IP Rating
 Outdoor IP44
Indoor IP20
Compressor
 Type / No. per Unit Compliant Scroll / 2
Starting Method D.O.L.
No. Refrigeration Circuits/No. Capacity Stages (Capacity range) 2 / 3 (~33% 66% 100%)
Refrigerant R410A
Fans (Type x Number per unit)
 Outdoor Axial Low Noise / 6 Pole External Rotor / Direct Drive x 3
Indoor Variable Speed EC Motor Direct Drive Backward Curve Plug Fan x 1 (EVY Models), 2 (ELY Models)
Airflow Range Indoor (l/s)
 Maximum 3900
Nominal 3200
Minimum 2500
External Static Pressure (Pa) at:
 Maximum Airflow 210
Nominal Airflow 390
Nominal Outdoor Dimensions (mm)
 Depth 1195
Height 1695
Width 2305
Nominal Indoor Dimensions (mm)
 Depth 1450
Height 1510
Width 1590
5 Nominal Weight (kgs)
 Outdoor 577
Indoor 340
6 Sound Pressure Level (dBA )
7 Sound Power Level (dBA)
 Outdoor (low/high fan) 59 / 64
Outdoor (low/high fan) 76 / 81
MEPS Certified Yes

ActronAir’s unique Tri-Capacity technology is designed and engineered in-house in our Sydney headquarters specifically for Australian conditions. Ideal for medium to large sized applications such as restaurants, banks, conference spaces, two-storey offices and cinemas, our Tri-Capacity delivers demonstrable benefits in energy efficiency, performance and ease of installation.

  • Vertical Discharge
  • High efficiency EC fan technology
  • Axial outdoor fan
  • BMS Option
  •  In-built controls solution
  • Dual control capability for enhanced user access
  • R410A refrigerant
  • Filter notification output
  •  Separate run outputs
  • Fault notification output
  • Multiple Handing Options
  • Individual motor protection
  • Circuit breaker and thermal overload
  • DRED enabled (AS4755)
  • Large indoor heat exchangers
  • Large outdoor heat exchangers
  • Low ambient cooling option to below 15°C
  • TX valves for improved efficiency
  • Foil face polyethylene insulation
  • Two speed condenser fans
  • Inbuilt economy control logic
  •  In-built evaporator safety tray for EVY and ELY indoor units
  • Compressor Compliant Scroll

ActronAir CAY620T / EVY620T 63.00kW – Standard Profile Split Ducted Tri-Capacity System 3 Phase – Brochure

Description

63.00 kW Cooling
60.00 kW Heating
