ActronAir CAY500T - ELY500T 50.20kW - Low Profile Split Ducted Tri-Capacity System 3 Phase

ActronAir CAY500T / ELY500T 50.20kW – Low Profile Split Ducted Tri-Capacity System 3 Phase

SKU: CAY500T / ELY500T

ActronAir CAY500T / ELY500T 50.20kW – Low Profile Split Ducted Tri-Capacity System 3 Phase

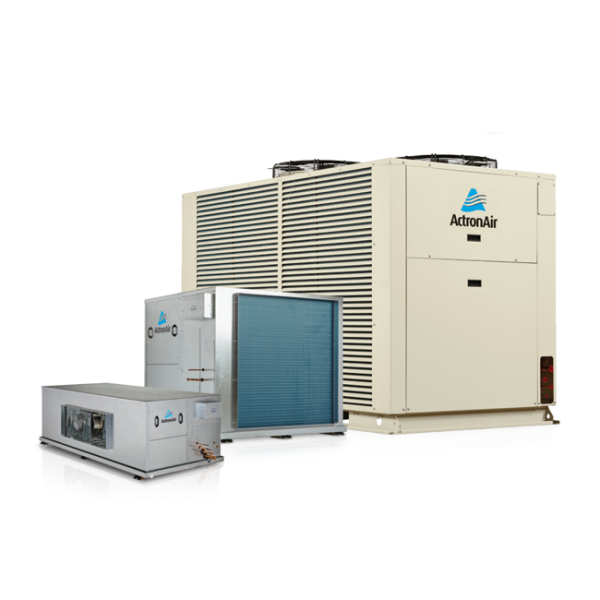

Includes Outdoor CAY500T | 770mm Height Low Profile Indoor ELY500T
High efficiency EC fan technology | Two speed condenser fans | Axial outdoor fan | Compliant Scroll Compressor



Or own it from $0.00 weekly for 6 months* zip money
Or pay in slices, no interest ever

OUTDOOR MODEL CAY500T
INDOOR MODEL ELY500T
Low Profile
1 Total (Gross) Capacity (kW) (AS/NZS3823.1.2)
 Cooling 50.1
Heating 50.4
Nett (Rated) Capacity (kW) (AS/NZS3823.1.2)
 Cooling 48.6
Heating 51.9
Input Power (kW) (AS/NZS3823.1.2)
 Cooling 15.23
Heating 15.36
2 EER Rated (AS/NZS3823.1.2)
3 COP Rated (AS/NZS3823.1.2)
 Cooling 3.19
Heating 3.38
Power Supply (V / Ph / Hz)
 Outdoor 400V / 3Ph + N / 50Hz
Indoor 400V / 3Ph + N / 50Hz
Rated Load Amps (AS/NZS3823.1.2) Full Load Amps (AS/NZS3823.1.2)
 Outdoor / Indoor / Total 27.7 / 2.7 / 30.4
Outdoor / Indoor / Total 36.4 / 5.2 / 41.6
4 Circuit Breaker Amps 50
IP Rating
 Outdoor IP44
Indoor IP20
Compressor
 Type / No. per Unit Compliant Scroll / 2
Starting Method D.O.L.
No. Refrigeration Circuits/No. Capacity Stages (Capacity range) 2 / 3 (~33% 66% 100%)
Refrigerant R410A
Fans (Type x Number per unit)
 Outdoor Axial Low Noise / 6 Pole External Rotor / Direct Drive x 3
Indoor Variable Speed EC Motor Direct Drive Backward Curve Plug Fan x 1 (EVY Models), 2 (ELY Models)
Airflow Range Indoor (l/s)
 Maximum 3100
Nominal 2600
Minimum 2000
External Static Pressure (Pa) at:
 Maximum Airflow 500
Nominal Airflow 500
Nominal Outdoor Dimensions (mm)
 Depth 1195
Height 1465
Width 2305
Nominal Indoor Dimensions (mm)
 Depth 1160
Height 770
Width 2410
5 Nominal Weight (kgs)
 Outdoor 542
Indoor 298
6 Sound Pressure Level (dBA )
7 Sound Power Level (dBA)
 Outdoor (low/high fan) 58 / 63
Outdoor (low/high fan) 75 / 80
MEPS Certified Yes



ActronAir’s unique Tri-Capacity technology is designed and engineered in-house in our Sydney headquarters specifically for Australian conditions. Ideal for medium to large sized applications such as restaurants, banks, conference spaces, two-storey offices and cinemas, our Tri-Capacity delivers demonstrable benefits in energy efficiency, performance and ease of installation.

  • Vertical Discharge
  • High efficiency EC fan technology
  • Axial outdoor fan
  • BMS Option
  •  In-built controls solution
  • Dual control capability for enhanced user access
  • R410A refrigerant
  • Filter notification output
  •  Separate run outputs
  • Fault notification output
  • Multiple Handing Options
  • Individual motor protection
  • Circuit breaker and thermal overload
  • DRED enabled (AS4755)
  • Large indoor heat exchangers
  • Large outdoor heat exchangers
  • Low ambient cooling option to below 15°C
  • TX valves for improved efficiency
  • Foil face polyethylene insulation
  • Two speed condenser fans
  • Inbuilt economy control logic
  •  In-built evaporator safety tray for EVY and ELY indoor units
  • Compressor Compliant Scroll

ActronAir CAY500T / ELY500T 50.20kW – Low Profile Split Ducted Tri-Capacity System 3 Phase – Brochure

Description

50.10 kW Cooling
50.40 kW Heating
