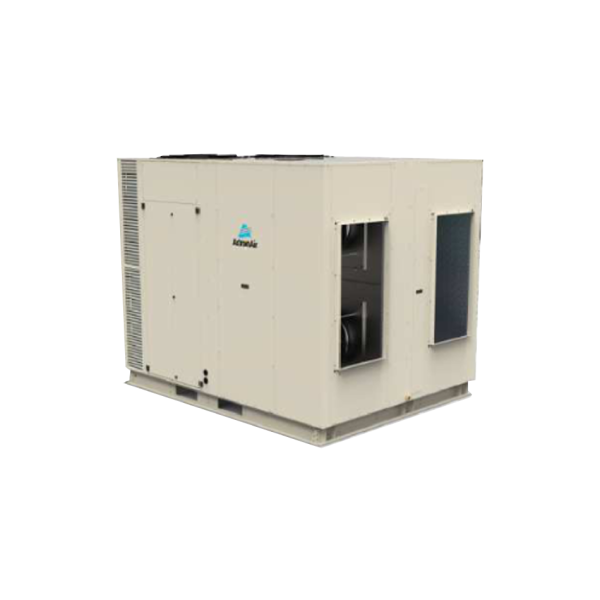

ActronAir PKV850T 86.35kW Variable Speed Commercial Rooftop Package Unit
86.35 kW Cooling | 83.80 kW Heating
ActronAir PKV850T 86.35kW Variable Speed Commercial Rooftop Package Unit
Tru-Inverter Technology Variable Speed | Energy Efficiency | Insulated Performance
| Technical Information | PACKAGE UNIT | |
| PACKAGE / OUTDOOR MODEL |
PKV850T
|
|
| INDOOR MODEL | ||
|
(1) Total (Gross) Capacity (kW) (AS/NZS3823.1.2)
|
Cooling (Rated) | 86.35 |
| Heating (Rated) | 83.8 | |
|
Net (Rated) Capacity (kW) (AS/NZS3823.1.2)
|
Cooling (Rated) | 30.00 / 84.50 / 92.95 |
| Heating (Rated) | 25.35 / 85.50 / 94.05 | |
|
Input Power (kW) (AS/NZS3823.1.2)
|
Cooling (Min / Rated / TruMax) | 25.6 |
| Heating (Min / Rated / TruMax) | 24.9 | |
|
Input Power (kW) Tru-max
|
Cooling (Rated) | 30.48 |
| Heating (Rated) | 27.03 | |
|
(2) EER Rated (AS/NZS3823.1.2)
(3) COP Rated (AS/NZS3823.1.2) |
Cooling (Rated) | 3.3 |
| Heating (Rated) | 3.48 | |
| EER Tru-max | Cooling (Tru-max) | 3.05 |
| COP TRU-MAX | Heating (Tru-max) | 3.48 |
|
Seasonal Performance Factor Commercial
|
TCSPF (Hot / Mixed / Cold) | 4.76 / 4.79 / 5.09 |
| HSPF (Hot / Mixed / Cold) | – | |
|
Power Supply – (V / Ph / Hz)
|
Package / Outdoor | 400V / 3PH + N- / 50Hz |
| Indoor | ||
| Rated Amps (AS/NZS3823.1.2) | 39.3 | |
| Full Load Amps (AS/NZS3823.1.2) Outdoor / Indoor / Total | 56.2 / 8.93 / 65.1 | |
| Circuit Breaker Amps (Suggested) | 80 | |
|
IP Rating
|
Outdoor | IP44 |
| Indoor | IP20 | |
|
Compressor
|
Type / No. per Unit | Inverter Variable Speed Scroll / 2 |
| Starting Method | Inbuilt Soft Starting | |
| No. of refrigeration Circuits / No. Capacity Stages | 2 / Variable Capacity | |
| Refrigerant | R-410A | |
|
Fans (Type x Number per units)
|
Outdoor | Variable Speed ECM / Direct Drive Axial Fan x 2 |
| Indoor | Variable Speed ECM / Direct Drive Backward Curve Plug Fan x 1 (72kW), 2 (85kW & 96kW) | |
|
Airflow Indoor (l/s)
|
Maximum | 5500 |
| Nominal | 4450 | |
| Minimum | 1300 | |
|
Package / Outdoor Dimensions (mm)
|
Depth | 2260 |
| Height | 2400 | |
| Width | 2960 | |
|
Indoor Dimensions (mm)
|
Depth | |
| Height | ||
| Width | ||
|
Nominal Weight (kgs)
|
Outdoor | 1371 |
| Indoor | ||
| Sound Pressure Level (dBA) | Outdoor (Quiet / Rated / Tru-Max) | 63.7 / 69.0 / 69.0 |
| Sound Power Level (dBA) | Outdoor (Quiet / Rated / Tru-Max) | 80.7 / 86.0 / 86.0 |
| MEPS Certified | Yes | |
Description
86.35 kW Cooling
83.80 kW Heating
