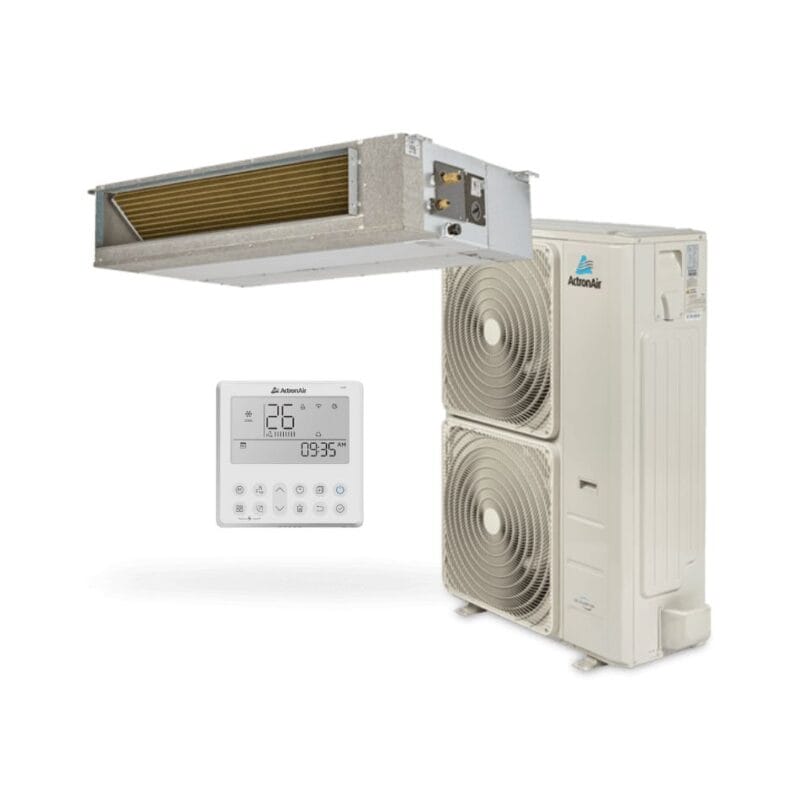

ActronAir LRE-170CS / LRC-170CS 17.0kW Ultra Slim Low Profile Inverter Split Ducted Air Conditioner
17.00 kW Cooling | 17.60 kW Heating
ActronAir LRE-170CS / LRC-170CS 17.0kW Ultra Slim Low Profile Inverter Split Ducted Air Conditioner
Includes Indoor LRE-170CS – Outdoor LRC-170CS | Includes Wired Controller
Indoor 249mm high | Includes Built In Drain Pump | Smooth operator | Gold Coated Protection
5 Years Manufacturer’s Warranty
| OUTDOOR MODEL | LRC-170CS | |
| INDOOR MODEL | LRE-170CS | |
| Nett (Rated) Capacity (kW) (AS/NZS3823.1.2) | Cooling (min – max) | 16.60 (6.80 – 19.50) |
| Heating (min – max) | 17.60 (7.00 – 21.00) | |
| Input Power (kW) (AS/NZS3823.1.2) | Cooling Rated | 4.93 |
| Heating Rated | 4.39 | |
| 1 EER Rated (AS/NZS3823.1.2) | Cooling Rated | 3.37 |
| 2 COP Rated (AS/NZS3823.1.2) | ||
| Heating Rated | 4.01 | |
| Power Supply – (V / Ph / Hz) | Outdoor | |
| Rated Load Amps (AS/NZS3823.1.2) | Cooling | 22.5 |
| Heating | 19.5 | |
| Full Load Amps (AS/NZS3823.1.2) | 31 | |
| Circuit Breaker Amps | 32 | |
| 3 Suggested Minimum Mains Cable Size | 6.0mm2 | |
| 3 Suggested Minimum Indoor to Outdoor Power Cable Size & Type | 1.0mm2 2 Core + Earth | |
| IP Rating | Outdoor | IP14 |
| Indoor | IPX0 | |
| Compressor | Inverter Twin-Rotary | |
| Refrigerant | R32 | |
| Airflow Range Indoor (l/s) | High | 1060 |
| Medium | 890 | |
| Low | 700 | |
| External Static Pressure Range (Pa) | 0 to 200 | |
| Airflow l/s | (Min / Nom / Max) | 600 / 850 / 1100 |
| Outdoor Dimensions (mm) | Depth | 415 |
| Height | 1333 | |
| Width | 952 | |
| Indoor Dimensions (mm) | Depth | 858 |
| Height | 440 | |
| Width | 1400 | |
| 4 Nominal Weight (kgs) | Outdoor | 95.8 |
| Indoor | 81.1 | |
| Indoor Sound Pressure Level (dBA) | (Low / Med / High) | 53.0 / 49.5 / 45.3 |
| 5 Outdoor Sound Pressure Level (dBA) 1m | 60.5 | |
| 6 Outdoor Sound Power Level (dBA) | 72 | |
| Outdoor Operating Range (°C) | Cooling | -15°C to 50°C |
| Heating | -25°C to 30°C | |
| Dry | 0°C to 50°C | |
| MEPS Certified | Yes | |
| FEATURES | ||
| Wired Wall Controller | WC-03 | |
| Follow Me Function | Yes | |
| Sleep | Yes | |
| Turbo | Yes | |
| Auto Defrost Function | Yes | |
| Timer On/Off | Yes | |
| 7-Day Scheduler / Weekly timer | Yes | |
| Dehumidification (Dry Mode) | Yes | |
| Return Air Sensor | Yes | |
| External Static Pressure Settings | Yes | |
| Drain Pump | Yes | |
| Bottom Return Air Connection | Optional | |
| Outside Air Intake | Optional | |
| Hanging Brackets | Yes | |
| Hydrophilic Aluminium Coil Protection | Yes | |
| Outdoor | Yes | |
| Demand Reponse | Ready | |
| Indoor Fan Speed | 4-Speed | |
| Outdoor Fan Speed | 5-Speed | |
| Auto Restart Auto Power Failure | Yes | |
| Fault Alarm Output Port | Yes | |
| Remote On/Off | Yes | |
| Left-Right Hand Drain Connection – Gravity Fed | Yes | |
| Easyconnect Wi-Fi App | Optional | |
| FIELD PIPING AND CONNECTION | ||
| Refrigerant Charge | Factory Charge – (g) | 4000 |
| Refrigerant Charge | 20 | |
| Pre-Charge Length – (m) | 24 | |
| Minimum Field Pipe Length – (m) | 3 | |
| Maximum Field Pipe Length – (m) | 75 | |
| Maximum Vertical Height Differential (m) included in max length | 30 | |
| Field Pipe Size | Liquid Pipe – mm (inch) | 9.52 (3/8) |
| Gas Pipe – mm (inch) | 19.05 (3/4) | |
| Outdoor Unit | Liquid Pipe – mm (inch) | 9.52 (3/8) |
| Gas Pipe – mm (inch) | 19.05 (3/4) | |
| Indoor Unit | Liquid Pipe – mm (inch) | 9.52 (3/8) |
| Gas Pipe – mm (inch) | 19.05 (3/4) | |
| Wiring Method | Hardwire to Outdoor | |
| Interconnect Data Cable | 2 Core 14/0.20 (0.44m2) Shielded | |
| Interconnect Power Cable | 2 Core + Earth | |
With an ActronAir UltraSlim Series 2 Ducted Split System, you can enjoy the best of both worlds – perfect climate control and energy efficiency. With a height of one of the lowest in its category, it is perfect for homes with limited installation space.
Incorporating DC technology, ActronAir’s UltraSlim Split Ducted range features inverter control and the ability to achieve superior operating efficiency, ensuring optimal comfort all year round.
Features
Indoor
- Tailored for tight spaces
The UltraSlim indoor unit hides in the tightest of spaces. At only 249mm high*, it provides maximum comfort with a minimal footprint.
*Applicable to LRE-071CS & LRE-100CS
- Easy Installation – Separable Design
ActronAir’s 17kW ducted system has been redesigned. The two-piece construction makes installation into space-constrained roof spaces easier than ever before, while still providing the same level of quality and performance that our customers expect. In addition, the increased airflow variability allows for greater flexibility in room layout, ensuring that you will get the most out of your new air conditioning unit.
- Precise airflow
With its high static design, the UltraSlim delivers the required airflow to your space easily, unlike other systems that can struggle and take a lot longer to cool or heat your space.
- The extras count
To avoid those annoying extra costs, the UltraSlim comes with many features our competitors don’t include, such as a built-in drain pump, remote on/off and fault alarm outputs for installation ease and efficiency.
Outdoor
- Coated Coil Protection
The UltraSlim uses gold fin epoxy coated protection on its indoor and outdoor coils, which helps to reduce corrosion from the harsh Australian conditions, as well as assisting the defrosting process, thus improving heating efficiency.
- DC Inverter Technology
The UltraSlim Ducted system uses ultra-energy-efficient DC, or direct current inverter technology in its inverter compressor resulting in improved efficiencies overall, along with optimal cooling performance.
$7,439.00 Bundle Price for Selected items
Description
17.00 kW Cooling
17.60 kW Heating
Indoor 249mm high | Gold Coated Protection | Built In Drain Pump
