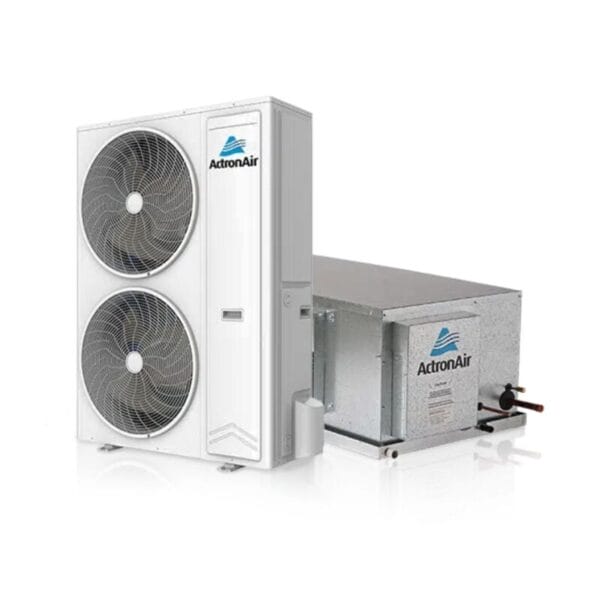

ActronAir CRS17AT / EVA17AS 17.00kW Aires Split Ducted Air Conditioner System | 3 Phase

SKU: CRS17AT / EVA17AS



> > > >
Model Outdoor CRS17AT
Indoor EVA17AS
(1)Total (Gross) Capacity (kW) (AS/NZS3823.1.2) Cooling (Rated) 17.40
Heating (Rated) 18.70
Nett (Rated) Capacity (kW) (AS/NZS3823.1.2) Cooling (Min/Rated/Max) 6.48 / 17.00 / 19.16
Heating (Min/Rated/Max) 5.27 / 19.08 / 21.18
Input Power (kW) (AS/NZS3823.1.2) Cooling (Rated) 5.02
Heating (Rated) 5.42
(2)EER Rated (AS/NZS3823.1.2) Cooling (Rated) 3.39
(3)COP Rated (AS/NZS3823.1.2) Heating (Rated) 3.52
Seasonal Performance Factor Residential TCSPF (Hot/Mixed/Cold) 4.46 / 4.20 / 4.35
HSPF (Hot/Mixed/Cold) 3.41 / 3.90 / 4.41
Power Supply – (V/Ph/Hz) Outdoor 400V / 3Ph + N- / 50Hz
Indoor 230V / 1PH + N – / 50Hz
Rated Amps (AS/NZS3823.1.2) Total 8.60
Full Load Amps (AS/NZS3823.1.2) Outdoor / Indoor / Total 8.10 / 4.30 / 12.40
(4)Circuit Breaker Amps (Suggested) 16.00
IP Rating Outdoor IPX4
Indoor IP20
Compressor Type / No. Unit Inverter Twin Rotary/1
Starting Method Variable Speed Drive
No. of Refrigeration Circuits / No. of Capacity Stages 1/Variable Capacity
Refrigerant R32
Fans (Type x Number per Unit) Outdoor Axial / DC Motor x 2
Indoor Twin Centrifugal / EC Motor x 2
Airflow Indoor (l/s) Maximum 1060
Nominal 890
Minimum 710
Outdoor Dimensions (mm) Depth 1350
Height 997
Width
Indoor Dimensions (mm) Depth 680
Height 435
Width 1420
(5)Nominal Weights (kgs) Outdoor 110
Indoor 61
(6)Sound Pressure Level (dBA) @ 3m Outdoor (quiet/rated/max) 50.0 / 56.9 / 57.0
(7)Sound Power Level (dBA) Outdoor (quiet/rated/max) 66.9 / 72.8 / 73.1
MEPS Compliant Yes
Demand Response Capability (AS4755.3) Yes
BMS and Home Automation Compatibility (ICUNO-MOD) Yes
Hydrophilic Blue Fin Coil Coat Protection – Indoor & Outdoor Coils Yes
Home Automation / Remote On / Off Capability Yes
Manual Inputs Capable for Third party Control Yes
Maximum Number of Zones 8
Run & Fault Indication Yes
Two Piece Indoor Option Yes
Operating Range -10oC to 50oC
LIQUID LINE 9.52mm (3/8″)
GAS LINE 19.05mm (3/4″)

Better together with Unity IQ.

AIRES seamlessly integrates with our locally designed and manufactured control systems, featuring advanced Unity IQ control logic.
This harmonious combination ensures that every component within the system operates in perfect synergy, delivering the precise comfort you desire.

Australian Made Comfort Experience the peace of mind that comes with Australian-made controls and a thoughtfully designed indoor unit, complete with zoning designed for how Australians truly live.

Quiet Operation Comfort comes not only in how you feel but also in what you hear, or with the AIRES, what you don’t hear. Using the latest technologies such as variable speed DC Inverters, modulating DC outdoor fans, and smooth operating EC indoor fans, the AIRES has been designed with your noise comfort in mind.

R32 Refrigerant ActronAir is environmentally aware and considers the potential impact and costeffectiveness of the refrigerants it uses. That’s why AIRES utilises R32, with a substantially lower Global Warming Potential than some alternative refrigerants, while enjoying the benefits of optimised energy efficiency.

Enhanced Performance With its DC inverter technology, which allows its compressor to modulate, the AIRES system is able to deliver smooth capacity transitions to meet your heating and cooling demands.

Energy Efficient Maintain comfort without breaking the bank. Using inverter technology, the AIRES system will automatically adjust its capacity to provide only the conditioning that is required, thereby reducing your running costs.

Compact Space Saving Outdoor Unit The AIRES outdoor unit features a sleek and compact design that provides you with the flexibility to install it in a range of locations. Save valuable space while enjoying powerful cooling and heating.

ActronAir CRS17AT / EVA17AS 17.00 kW Aires Split Ducted Air Conditioner System | 3 Phase – Brochure

Description

17.00 kW Cooling
19.08 kW Heating

Compact Design | Quiet Mode
