Model | Outdoor | CRS15AT | |||
Indoor | EVA15AS | ||||
(1)Total (Gross) Capacity (kW) (AS/NZS3823.1.2) | Cooling (Rated) | 15.55 | |||
Heating (Rated) | 16.35 | ||||
Nett (Rated) Capacity (kW) (AS/NZS3823.1.2) | Cooling (Min/Rated/Max) | 6.00 / 15.20 / 17.21 | |||
Heating (Min/Rated/Max) | 5.05 / 16.70 / 18.59 | ||||
Input Power (kW) (AS/NZS3823.1.2) | Cooling (Rated) | 4.43 | |||
Heating (Rated) | 4.64 | ||||
(2)EER Rated (AS/NZS3823.1.2) | Cooling (Rated) | 3.43 | |||
(3)COP Rated (AS/NZS3823.1.2) | Heating (Rated) | 3.60 | |||
Seasonal Performance Factor Residential | TCSPF (Hot/Mixed/Cold) | 4.72 / 4.43 / 4.61 | |||
HSPF (Hot/Mixed/Cold) | 3.42 / 3.87 / 4.31 | ||||
Power Supply – (V/Ph/Hz) | Outdoor | 400V / 3Ph + N- / 50Hz | |||
Indoor | 230V / 1PH + N – / 50Hz | ||||
Rated Amps (AS/NZS3823.1.2) | Total | 7.30 | |||
Full Load Amps (AS/NZS3823.1.2) | Outdoor / Indoor / Total | 6.80 / 4.30 / 11.10 | |||
(4)Circuit Breaker Amps (Suggested) | 16.00 | ||||
IP Rating | Outdoor | IPX4 | |||
Indoor | IP20 | ||||
Compressor | Type / No. Unit | Inverter Twin Rotary/1 | |||
Starting Method | Variable Speed Drive | ||||
No. of Refrigeration Circuits / No. of Capacity Stages | 1/Variable Capacity | ||||
Refrigerant | R32 | ||||
Fans (Type x Number per Unit) | Outdoor | Axial / DC Motor x 2 | |||
Indoor | Twin Centrifugal / EC Motor x 2 | ||||
Airflow Indoor (l/s) | Maximum | 920 | |||
Nominal | 770 | ||||
Minimum | 620 | ||||
Outdoor Dimensions (mm) | Depth | 1350 | |||
Height | 997 | ||||
Width | 1020 | ||||
Indoor Dimensions (mm) | Depth | 615 | |||
Height | 412 | ||||
Width | 1290 | ||||
(5)Nominal Weights (kgs) | Outdoor | 99 | |||
Indoor | 53 | ||||
(6)Sound Pressure Level (dBA) @ 3m | Outdoor (quiet/rated/max) | 45.8 / 55.1 / 55.4 | |||
(7)Sound Power Level (dBA) | Outdoor (quiet/rated/max) | 63.4 / 71.8 / 72.1 | |||
MEPS Compliant | Yes | ||||
Demand Response Capability (AS4755.3) | Yes | ||||
BMS and Home Automation Compatibility (ICUNO-MOD) | Yes | ||||
Hydrophilic Blue Fin Coil Coat Protection – Indoor & Outdoor Coils | Yes | ||||
Home Automation / Remote On / Off Capability | Yes | ||||
Manual Inputs Capable for Third party Control | Yes | ||||
Maximum Number of Zones | 8 | ||||
Run & Fault Indication | Yes | ||||
Two Piece Indoor Option | Yes | ||||
Operating Range | -10oC to 50oC | ||||
LIQUID LINE | 9.52mm (3/8″) | ||||
GAS LINE | 19.05mm (3/4″) |

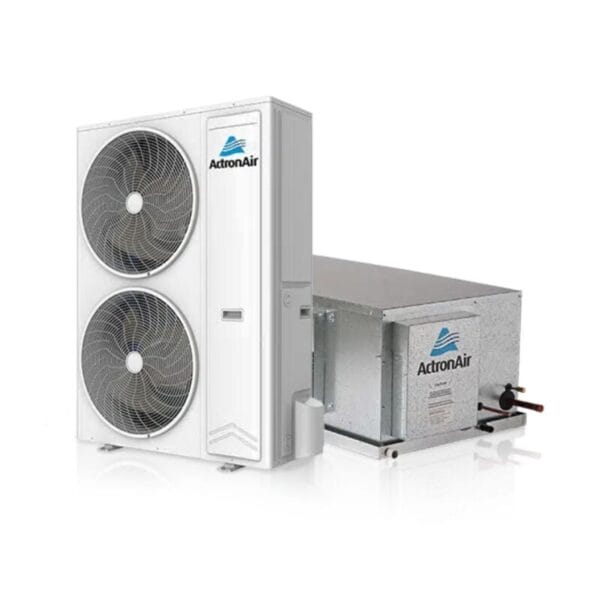

ActronAir CRS15AT / EVA15AS 15.20 kW Aires Split Ducted Air Conditioner System | 3 Phase
ActronAir CRS15AT / EVA15AS 15.20 kW Aires Split Ducted Air Conditioner System | 3 Phase
Includes Indoor EVA15AS – Includes 8 Zone Integrated & 20m CAT5E Cable – Yellow | Outdoor CRS15AT
Optional Controllers: NEO TOUCH Master Wall Controller (Black/White) / 7 day wall controller (White/Grey)
Optional Zone Barrels:
-
- ZB-08-200 – Zone Barrel 8 INCH – 200MM (Includes 7m CAT5E zone cable)
- ZB-10-250 – Zone Barrel 10 INCH – 250MM (Includes 7m CAT5E zone cable)
- ZB-12-300 – Zone Barrel 12 INCH – 300MM (Includes 7m CAT5E zone cable)
- ZB-14-350 – Zone Barrel 14 INCH – 350MM (Includes 7m CAT5E zone cable)
- ZB-16-400 – Zone Barrel 16 INCH – 400MM (Includes 7m CAT5E zone cable)
Optional Plenums:
- PL18S-2/35S – Supply 2 x 350mm (14″) spigot – PL18R-2/35S Return 2 x 350mm (14″) spigot
- PL20S-2/40S – Supply 2 x 400mm (16″) spigot – PL18R-2/35S Return 2 x 350mm (14″) spigot
- PL13S-3/30S – Supply 3 x 300mm (12″) spigot – PL18R-2/35S Return 2 x 350mm (14″) spigot
- PL18S-3/35S – Supply 3 x 350mm (14″) spigot – PL18R-2/35S Return 2 x 350mm (14″) spigot
- PL20S-3/SPS – Supply 1 x 400mm (16″) / 2 x 350 (14″) spigot – PL18R-2/35S Return 2 x 350mm (14″) spigot
Optional Insulated Copper Pair Coil
5 Years Manufacturer’s Warranty
Better together with Unity IQ.
AIRES seamlessly integrates with our locally designed and manufactured control systems, featuring advanced Unity IQ control logic.
This harmonious combination ensures that every component within the system operates in perfect synergy, delivering the precise comfort you desire.
Australian Made Comfort Experience the peace of mind that comes with Australian-made controls and a thoughtfully designed indoor unit, complete with zoning designed for how Australians truly live.
Quiet Operation Comfort comes not only in how you feel but also in what you hear, or with the AIRES, what you don’t hear. Using the latest technologies such as variable speed DC Inverters, modulating DC outdoor fans, and smooth operating EC indoor fans, the AIRES has been designed with your noise comfort in mind.
R32 Refrigerant ActronAir is environmentally aware and considers the potential impact and costeffectiveness of the refrigerants it uses. That’s why AIRES utilises R32, with a substantially lower Global Warming Potential than some alternative refrigerants, while enjoying the benefits of optimised energy efficiency.
Enhanced Performance With its DC inverter technology, which allows its compressor to modulate, the AIRES system is able to deliver smooth capacity transitions to meet your heating and cooling demands.
Energy Efficient Maintain comfort without breaking the bank. Using inverter technology, the AIRES system will automatically adjust its capacity to provide only the conditioning that is required, thereby reducing your running costs.
Compact Space Saving Outdoor Unit The AIRES outdoor unit features a sleek and compact design that provides you with the flexibility to install it in a range of locations. Save valuable space while enjoying powerful cooling and heating.
Description
15.20 kW Cooling
16.70 kW Heating
Compact Design | Quiet Mode
