Condensate Pumps
Condensate pumps play a vital role in HVAC systems by safely removing the condensation that builds up during cooling cycles. These compact devices are especially important in installations where gravity drainage isn’t possible, such as in basements or areas with limited space. Homeowners and HVAC professionals often search for reliable condensate pumps as part of their essential air conditioning installation accessories, since they help prevent water damage, mold growth, and costly maintenance issues. By offering consistent performance and quiet operation, condensate pumps ensure an air conditioning system runs efficiently while maintaining indoor comfort.
Air Conditioning Accessories | Copper Pair Coil | Copper Pair Coil Fire Rated | Brackets | Duct and Outlet Packages | Duct Tapes | Return Air Grill with Filter | Diffusers and Outlets | Branch Take Off | Filters | Double Branch Take Off | Y Piece Connector | Zone Barrels and Damper Motors | Wall Hung Duct/Fittings | Condenser Block | Condenser Cages | Wi-Fi Adaptors | Grills | Insulated Flexible Duct

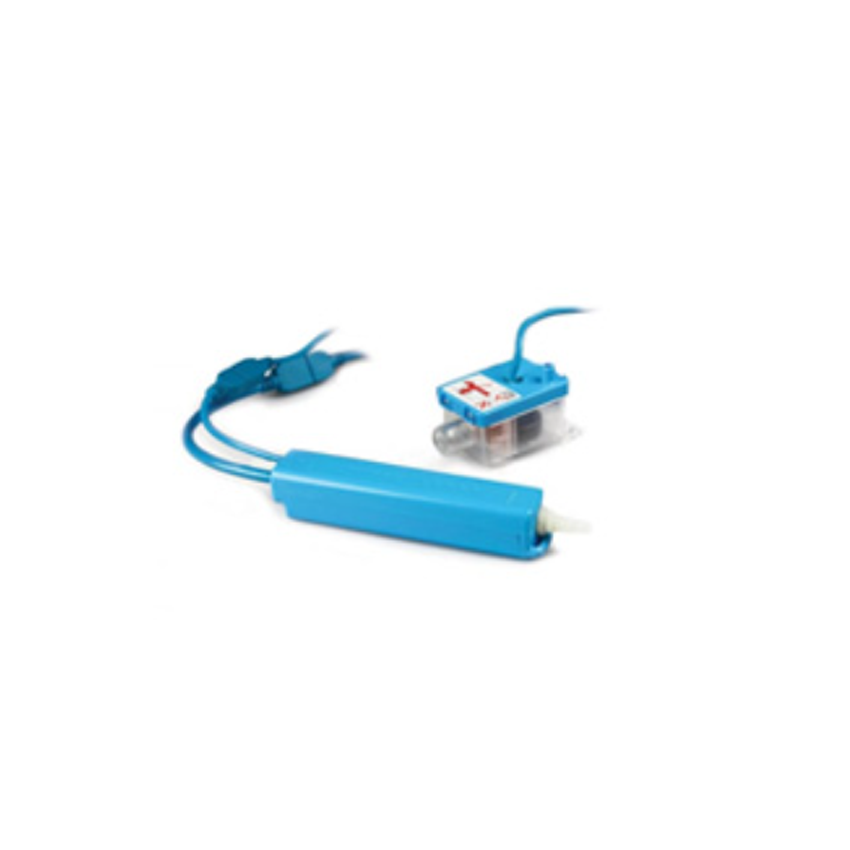

Mini Aqua Silent+, Rear Mounted Condensate Pump 12L/hr Max
Mini Aqua Silent+, Rear Mounted Condensate Pump 12L/hr Max

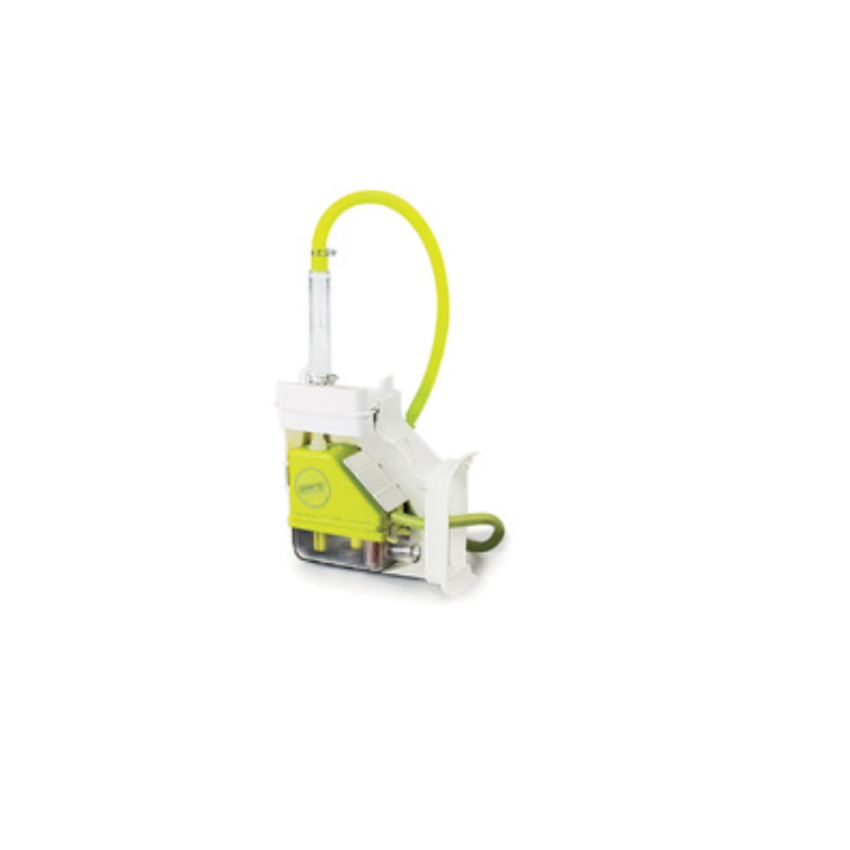

Mini Lime Side Mounted Condensate Pump12L/hr Max
Mini Lime, Side Mounted Condensate Pump12L/hr Max
- Univolt
- Left or right install
- Trunking system options
- Easy access for servicing

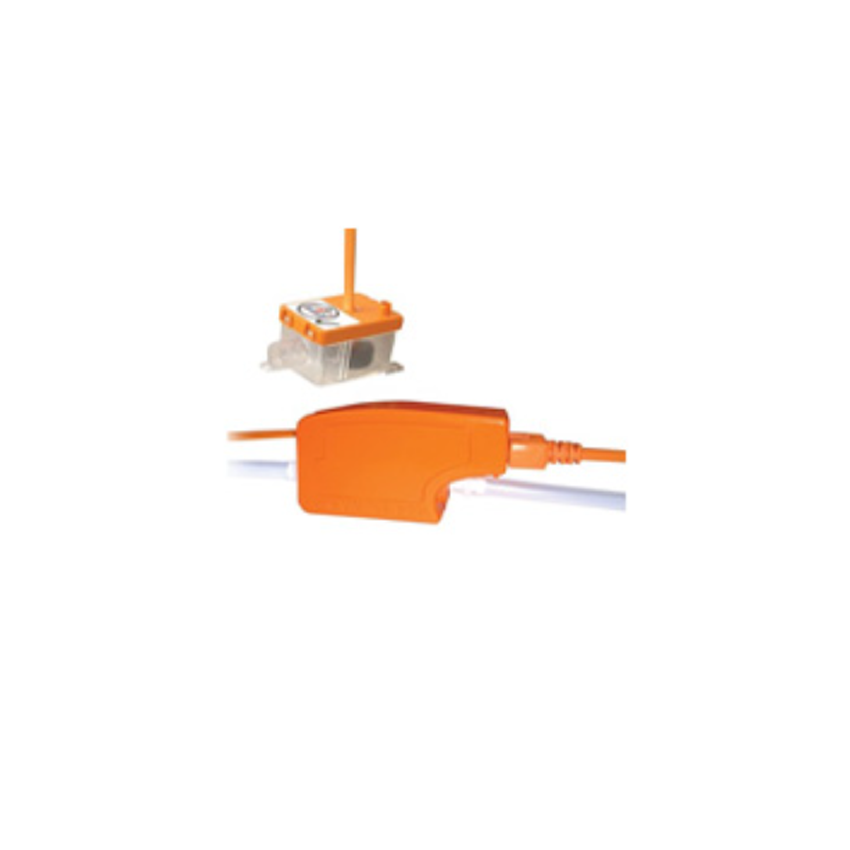

Mini Orange Internally Mounted Condensate Pump 12L/hr Max
Mini Orange Internally Mounted Condensate Pump 12L/hr Max
- Univolt
- Plug & play
- Anti siphon device
- Submersible secondary reservoir include
Selecting the right Aspen Pump
Where is the pump going to be installed?
Hi Wall Split A/C
- In the ceiling – mini/maxi orange
- Behind the indoor unit – mini aqua
- Under the indoor unit – mini blanc
- In pipe duct with pipe – mini/maxi lime
Ducted A/C
- In the ceiling – MAX Hi Flow / Mini Tank / Hi Lift Tank
What size is the air conditioner in kW?
For every kW of cooling an air conditioner can produce 1-1.5L of condensate per hour (LPH) Example (using 1LPH): 5kW unit = 5LPH
*Please note: Condensate output can vary greatly depending on environmental conditions like humidity. Please check local conditions and use 1.5+ LPH if required.
How far must the pump lift the water?
A = vertical distance from condensate tray to inlet of pump B = vertical distance from pump outlet A + B = Meters of head
