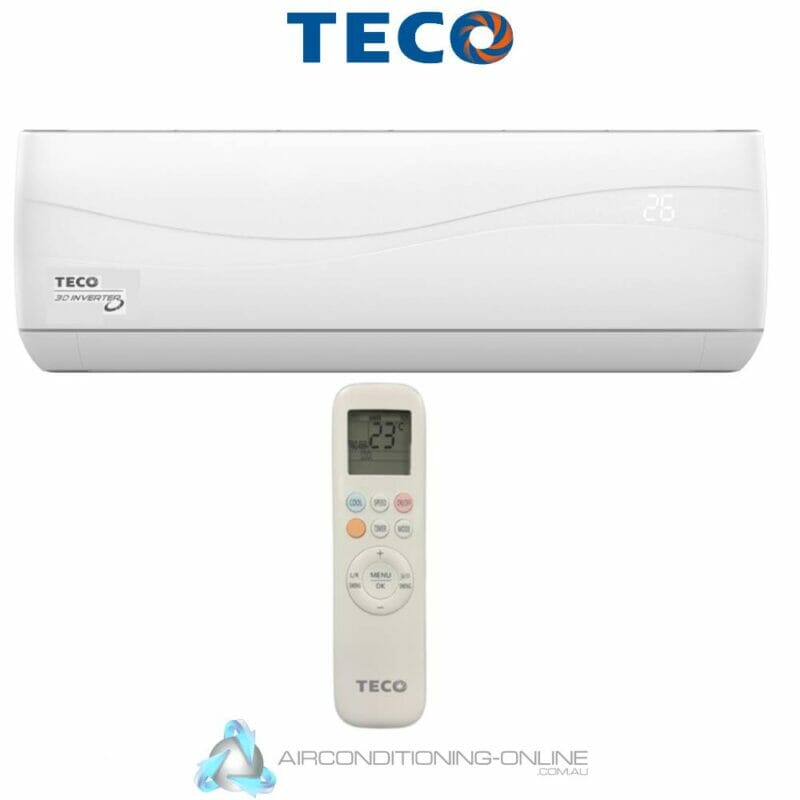

Teco Platinum 3D TWS-TSO26C3DVGA 2.6kW Split System Air Conditioner Cooling Only

SKU: TWS-TSO26C3DVGA

Teco Platinum 3D TWS-TSO26C3DVGA 2.6kW Split System Air Conditioner Cooling Only



$795.00

> Compare
Model Number Indoor TWS26C3DVGA
Outdoor TSO26C3DVGA
Power supply V – Ph – Hz 220~240 – 1 – 50
Power supply attachment Outdoor
Cooling Capacity (MEPS) kW 2.64 (0.6-3.20)
Running current A 3.2
Power input W 550
E.E.R. rating 4.80
Star rating (zone)
(Hot/Med/Cold)
8.5 / 6.5 / 7
Moisture removal L/Hr 0.5
Indoor fan speeds Turbo/
H/M/L/Silent
5
Indoor cooling air flow (max) L/ 172
Compressor type Rotary
Indoor sound power level dB(A) 54
Outdoor sound power level dB(A) 59
Refrigerant type R32
Connection pipe size
(Liquid / Gas)
mm (inch) 6.35 / 9.52 (1/4″ / 3/8″)
Max. pipe length m 20
Max. height difference m 10
Pipe connection method Flare
Indoor dimensions
(H x W x D)
mm 294 x 881 x 194
Indoor net weight Kg 9.5
Outdoor dimensions
(H x W x D)
mm 545 x 800 x 315
Outdoor net weight Kg 28
Ambient temperature
(Cooling / Heating)
°C 16~52 / -15~32

Exceptional Energy Efficiency

  • Offering outstanding energy efficiency with up to 8.5 star rating*. The higher the star rating, the more it helps to keep running costs down.
  • *Refer to pages 6 & 7 of the 2021 Split System brochure for more MEPS energy star rating information.

3D Air Flow

  • Combines vertical and horizontal auto swing to ensure an even distribution of
  • conditioned air throughout the room.

4 Way Auto Swing

  • Cleverly designed to evenly distribute conditioned air. This helps warm up or cool down faster, evenly and continuously.

R32 Refrigerant

  • R32 is a next generation refrigerant, not only does it enhance performance by carrying heat, it also has no impact on ozone depletion and minimises Global-Warming Potential (GWP) compared to traditional refrigerants.

Built-in Wi-Fi

  • The built-in Wi-Fi enables you to control the air conditioner from anywhere using your mobile phone or tablet. Download our App for your smart device and control your indoor unit remotely either in or out of home.
  • Compatible with popular smart speakers (Google & Alexa).

Gold Fin Protection

  • Gold Fin Protection aids in reducing corrosive effects on outdoor coils and preserves heat exchange capacity for longer. Gold Fin also promotes the effectiveness of the Self Clean function on indoor evaporator coils.

Service Friendly

  • In-built diagnostics, easily accessible panels and detection system
  • ensures each unit is easy to maintain and service.

Louvre Memory

  • The indoor unit remembers the last angle you had the louvre set at so you don’t have to re-select each time you start the unit.

I Feel Mode

  • When you select this function, the room temperature sensor built in to the remote controller is activated, replacing the one in the indoor unit. The air conditioner will regulate the room temperature based on the temperature around the remote controller, just as if the air conditioner is following you.

ECO Mode

  • ECO mode is an energy-efficient setting that works in cooling mode by reducing the fan speed to minimum and adjusting the outdoor frequency. This mode helps reduce running costs.

Interactive Digital Display

  • Information is displayed on the front panel of wall hung spit units, such as function confirmation and set temperature.

Silent Mode

  • Pressing this button on the remote control activates the quiet function, lowering the fan speed to a gentle breeze inside as well as reducing the compressor running frequency outside.

D.R.E.D. Connection

  • Our outdoor unit is fitted with a Demand Response Enabling Device Connection (RJ45) ensuring you can elect to participate in electricity providers promotional programs where they cap demand for electricity.
  • (Currently only on offer in Queensland).

Timer Mode

  • Have your unit switch on or off after a period of time you set. Great for switching unit on automatically before you get home or switch off automatically after you go to bed.

Auto Restart

  • The operation mode, set temperature, and the fan speed you have selected are memorised by the indoor control PCB. The AUTO RESTART function sets to work restoring your settings the moment power has been restored after a power failure.

Turbo Fan Mode

  • With this function, the air conditioner will maximise the output of cooling capacity, making the room cool down or heat up rapidly to attain the desired temperature in the shortest time.

Long Distance Air Flow

  • With a powerful selection of fan speeds and 3D air flow, ensures an even and thorough air flow coverage within the room.

Refrigerant Leak Detection

  • Detects refrigerant leakage in cooling mode by monitoring the temperature reduction at the indoor evaporator when unit is switch on. This protects the compressor in case of a refrigerant leak or blockage.

High Density Filter

  • Unwanted particles of dust and pollen are trapped because our high density filters have 40% more holes per square centimeter: which gives you higher filtration in the room.

PM2.5 Filter

  • High voltage statically charged filter. Dust and airborne particles less than 2.5 micrometres are absorbed. This process purifies the air passing through the air conditioner. Helping you breath easier.

Sleep Mode

  • This mode is specifically designed to create a comfortable environment for sleep as it slowly increases or decreases the set temperature. This is done over the period of several hours until it eventually returns to the original set temperature. This mode assists in reducing running costs while maintaining a comfortable temperature while you sleep.

Clean Indoor Self Cleaning

  • This advanced feature captures the dust and dirt on the indoor coil by rapidly cooling then defrosting. This process flushes away unwanted contaminates. The air conditioner runs through a drying cycle to complete the cleaning process.

Description

2.6 kW Cooling
Built-in WI-FI | R32
PM 2.5 Filter | 3D Airflow
