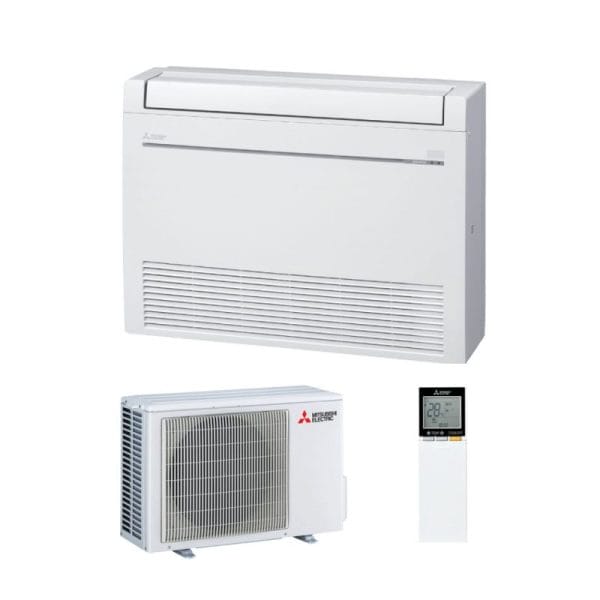

MITSUBISHI ELECTRIC MFZKW35KIT 3.5kW Floor Console R32

SKU: MFZKW35KIT

MITSUBISHI ELECTRIC MFZKW35KIT 3.5kW Floor Console R32

Indoor: MFZ-KW35VG-A1 Indoor Unit – Wireless R/C

Outdoor: MUFZ-KW35VG-A1 R32 Outdoor


Model Name MFZ-KW35VGKIT
Indoor Unit MFZ-KW35VG-A1
Outdoor Unit MUFZ-KW35VG-A1
Refrigerant R32
Cooling
Capacity (Rated Conditions) kW 3.50
Capacity (Min – Max) kW 0.7 – 3.80
AEER/EER (Rated Conditions) 3.98 / 4.02
New Star Rating Hot & Humid 3.5
Mixed 3.0
Cold 3.5
Running Current (Rated) A 4.20
Sound Pressure Levels
Indoor [Quiet – SHI*] dB(A) 20 – 44
Outdoor (SPL/PWL) dB(A) 48 / 61
Air Volume (IN) [Quiet – SHi*] L/S 65 – 172
Heating
Capacity (Rated Conditions) kW 4.30
Capacity (Min – Max) kW 0.23 – 6.00
ACOP / COP (Rated Conditions) 3.74 / 3.77
New Star Rating Hot & Humid 3.0
Mixed 2.5
Cold 2.0
Running Curremt (Rated) A 5.30
Sound Pressure Levels
Indoor (Quiet – SHI*) dB(A) 18 – 44
Outdoor (SPL/PWL) dB(A) 47 / 60
Air Flow (Quiet – SHi*) L/S 58 – 173
Indoor – Dimensions (HxWxD) mm 600 x 750 x 215
Weight – Indoor kg 15
Outdoor – Dimensions (HxWxD) mm 550x800x285
Weight – Outdoor kg 35
Electrical Supply 230V, Single, 50Hz, Outdoor unit Power Supply
Breaker Size A 10
Piping
Max. length m 20
Max. height m 12
Guaranteed Operating Range
Cooling °C -10 ~ 46
Heating °C -15 ~ 24
Accessories
Remote Control SG191 (Part No. T2W EFF 426)

Description

3.5 kW Cooling
4.0 kW Heating

Multi-flow Vane | Excellent energy saving
